技术参数

YM-ZT512

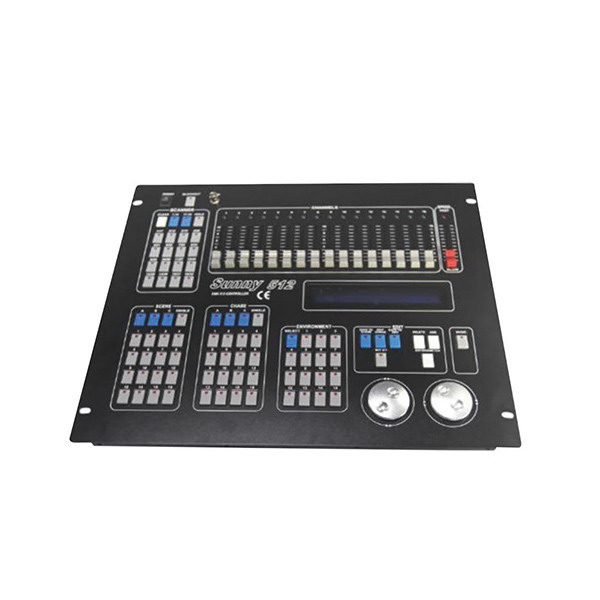

Sunny 512 Console

2 optically isolated individual drive signal output port.
Anti-2000Vrms electrical shock. Independent flapper
structure, easy to replace.Control 32 16 DMX channels.
With a large backlight LCD display operating parameters.
16 sliders for channel, 1 slider for speed control.
1600 chase steps storage capacity. 48 chases, each up to
100 steps. Each step contains its speed and cross
parameter settings. Optional Music synchronously and
manual speed control. You can run four chases, 48 scenes
and 32 computers simultaneously lantern lamp operation.
Different types of scanners X / Y controlled by modulation wheel.
16Bit scanner X / Y control accuracy.15 environment programs,
quick call different scenes, chase, and manual operation (lantern)
combination.The music signal can be got from audio line input or
inside microphone.Off data retention.High performance switching
power supply, low power harmonious distortion and wide voltage
range, in line with national power requirements worldwide.
DMX signal output connector: XLR-D3F x 2
Audio line input connector: 1/4 "mono jack.
Optional 12V gooseneck lights.
