技术参数

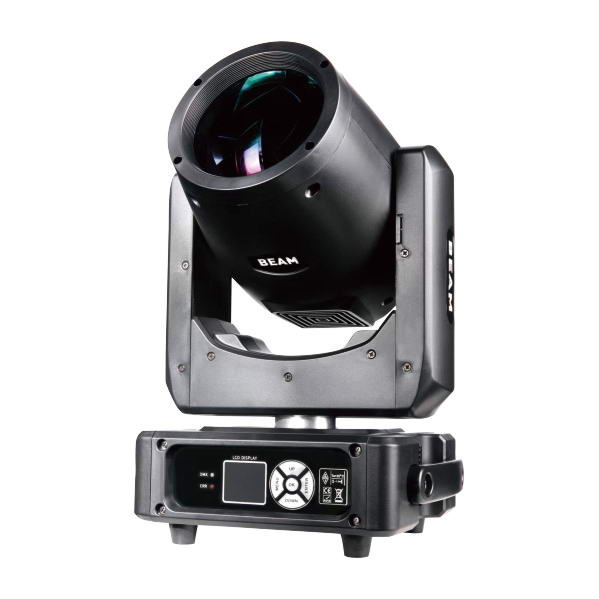

Mini 230 Beam Light

Voltage: AC100-240V, 50/60Hz
Total power: 300W
Light source: original original OSRAM230W or PHILIPS
Color temperature: 8000K
Ballast: OSRAM electronic inductive ballast
Control mode: DMX512/WDDMX/self-propelled
Channel: 16 channels
Display: dot-matrix LCD display, four touch switches, 180 ° reverse
Color disc: a color disc, each color disc is composed of 14 color chips+white, with adjustable rotation speed, two-way water flow effect and rainbow effect.
Pattern disc: fixed pattern disc, 13 pattern effects+white light
Prism: 36 honeycomb prisms, 16 prisms, double prisms can be superimposed and rotated independently in both directions
Two-way rotation, rotation speed adjustable.
Focusing: linear focusing, from near to far.
With atomization function, the atomization speed is adjustable.
0-100% mechanical dimming, support mechanical stroboscopic and adjustable stroboscopic effect, support stroboscopic macro function, and mechanical stroboscopic is 1-12 F.P.S.
Lens group optical system, electric focusing, beam angle 0~4 °
The system is equipped with lamp use duration function, RDM remote address code function, automatic feedback signal, automatic error correction function, overheat protection function
Horizontal 540 °, 16Bit vertical 270 °, 16Bit
IP protection grade: Ip20
Size: 320 × two hundred and twenty × 580mm(L*W*H)
Net weight: 16KG
