YM-F350

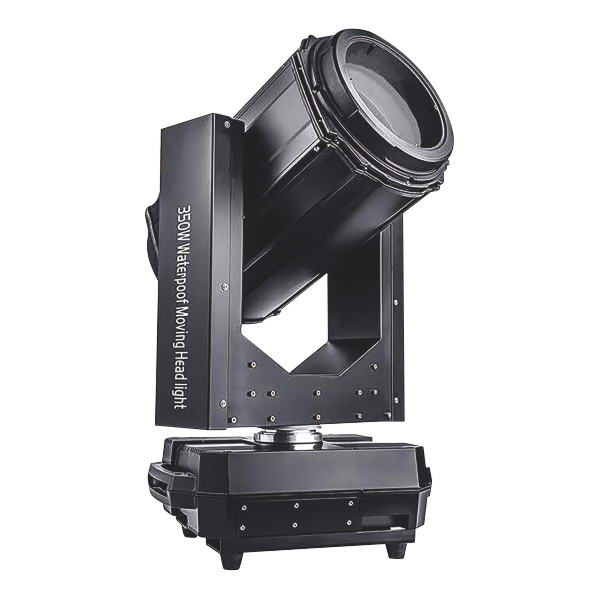

350W Waterproof Beam Light

Voltage: wide voltage 110V-240V , 50-60Hz
Light source system: original Japanese Phoenix 17R 350W +

original Osram lighter
Color system: Color wheel: 13+1+ colorful rainbow effect +

atomization function
Pattern system: pattern plate: 13 fixed patterns +1 white light
Focusing system: electric focusing
Linear dimming curve: 0%-100% linear dimming
Beam angle: 2°
Channel: 16 channels
Lens diameter: 145mm
Waterproof rating: IP65
Control mode: DMX 512, self-propelled, master-slave machine

self-propelled
Prism system: 24 prisms (16+8) superimposed and rotatable,

macro function
Display: LCD display adapts to different installation positions
Horizontal/Vertical: 350° waterproof lamp can scan

540°horizontally or 270°vertically, which is fast and stable.
The lamp is equipped with an intelligent photoelectric reset

correction system, which can automatically return to the original

position when accidental misoperation occurs. In addition, it has

horizontal and vertical locking buttons, which is more

convenient for maintenance and transportation.
Cooling system: Use CFD software to analyze and calculate the

heat flow of lamps and lanterns, and design a low-noise cooling

system with excellent fan drive performance and extremely low

noise.
Installation method: upside down/side hanging freely
Lamp body size: 37*30*68cm Net weight: 23kg
Packing size: 50*44*68cm gross weight: 27kg
One air box: 42*37*91cm Weight: 37kg
One flight case two: 92*41*91cm Weight: 70kg
Not to show any weakness, small in size, huge energy, large

beam, waterproof beam lamp has reached high standards in the

industry in terms of optics, structure, appearance and other

aspects. It adopts advanced technology, high brightness light

source, optical technology and rigorous industrial design. , To

ensure the perfect presentation of lighting design.
