YM-A280

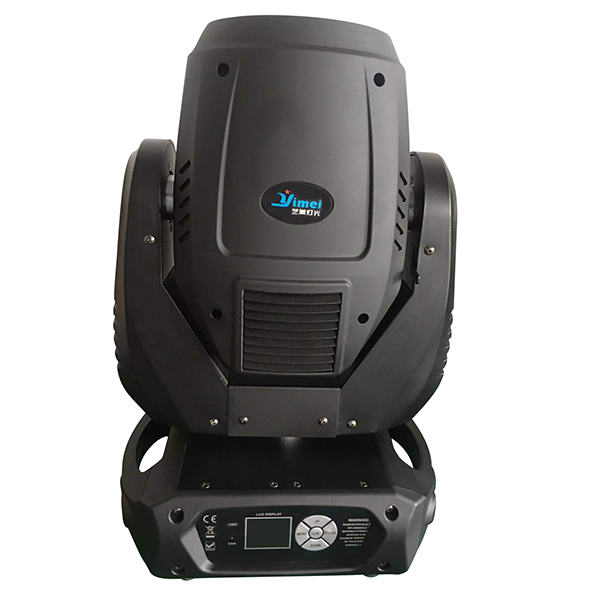

280W Moving Head Beam Light

Voltage: AC100-240V, 50/60Hz
Light source: Osram 10R 280W
Luminous flux: 140,000LM at a distance of 10 meters
Color temperature: 8000K
Color wheel: 13 colors + blank
Pattern: pattern 14+blank, applied to rotate 9 patterns
Control: DMX512, master/slave, voice control and autonomous
Channel: 16/24 channel
Prism: 6-sided prism and 8-sided prism
Dimming: 0-100% linear dimming
Beam angle: 2.8-38° linear zoom
Horizontal scan: 540° (16 bit) electric correction
Vertical scan: 270° (16 bit) electric correction
Color touch screen, 180° flip display
Lens: high precision optical lens
With internal regulator, it can work with unstable input voltage
Packing size: 450×430×570mm (1 set/package)
Net weight: 16kg
Gross weight: 18.5kg
