技术参数

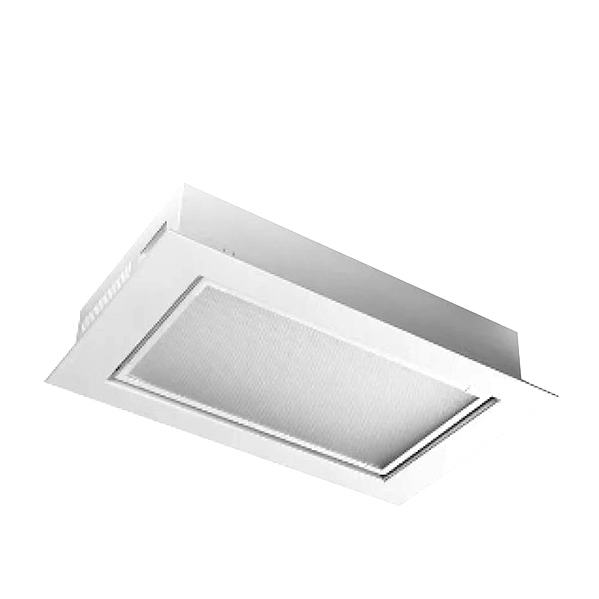

Embedded flat soft light

Voltage: AC100-240V 50-60HZ
Rated power: 150W
Color temperature: 3000K-6000K (linear adjustable)
Lamp beads; Adopt OSRAM high-definition LED array 512 * 0.5W lamp beads
Color rendering index Ra>95
Channel mode: 3CH/4CH
Beam angle: 120 °
Heat dissipation mode: natural heat dissipation without fan, zero noise.
Communication protocol: USITTDMX-512
Dimming: 0-100% linear dimming smooth without flicker
Accessories: can be equipped with shutter, cellular network power line, signal line
Pitch angle: 0~60 ° electric adjustment
Limit mode: magnetic sensor, higher sensitivity, high accuracy limit
Opening size: 490mm long * 280 wide
Installation method: lifting, ceiling, embedded
The imported low power LED with high color rendering index is used as the light emitting element
High light efficiency, good color rendering, no glare, suitable for professional places such as news studios, various conference rooms, multi-function halls, etc
Product appearance: high-strength aluminum alloy, fin heat dissipation, streamlined appearance design
Protection grade: Ip20
