技术参数

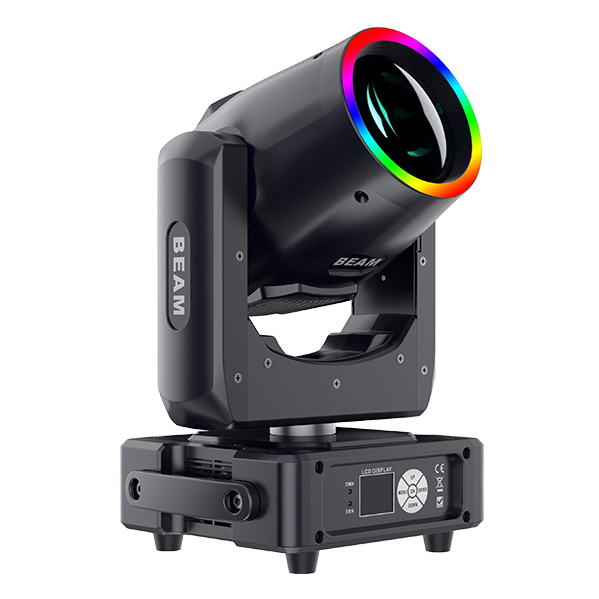

230W LED With Aperture

Input voltage: AC100 - 240V 50/60Hz
Power: 300W
Light source: LED230W
Color temperature correction: 8500K/6800K/4500K/3200K
Average life: 2000H
Channel: 24/28CH
Display: 2.8 inch widescreen LCD touch screen, Chinese and English display interface, 180 ° reverse display
Color: 14 color chips+white light (half color effect)
Fixed pattern plate: 17 patterns+white light; (4 glass patterns can be added)
Color: 13 color chips + 1 white light
Aperture: RGB120 patch lamp beads, can flow water and strobe, with built-in effect
Prism: two independent rotating prisms (one 8-prism and one honeycomb 24-prism) can generate 32 sharp and clear beam effects with the effect of colorful rhombus mirror.
Dimming: 0% - 100% mechanical dimming is smooth without flicker, and the two-piece strobe can flash 0.5-14 times/second
Adjust and turn off the power of stroboscopic lamps, reduce energy consumption and environmental protection, and support stroboscopic macro function (pulse
Dynamic, synchronous, asynchronous, random)
Atomization: imported high-temperature resistant atomizing sheet, 0% - 100% atomization, atomizing soft light dyeing effect, dyeing angle 0-20 degrees, can be used for fixed point tracing surface light, lens diameter: 165mm (large diameter coarse beam)
Rotation angle X axis 540 degrees, Y axis 270 degrees
Boundary dimension: 264 * 338 * 558mm
Net volume: 18KG
