技术参数

YM-A440

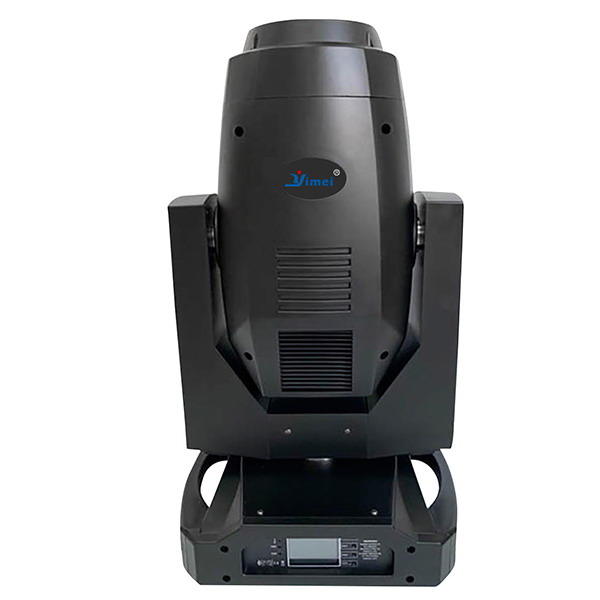

440/380W 3-in-1 Moving Head Light

Voltage:AC100-240V 50/60HZ
Lamp power:Osram or Philip 440W/380W,color temperature 7500K
Total power:500W
Channel:24 DMX channels
Gobo:1 rotary gobo wheel with 7 gobos plus open,
1 fixed gobo wheel with 13 gobos plus open
Color:13 colors plus open
Operation mode:sound control,auto movement,
master-slave,DMX512
Prism:2 individual prisms(standard 8 and 16 facet prism),
can be bidirectional rotation
(8/16/24 facet prism,row or ladder prism selected )
Strobe:fast double strobe,1-20times/sec
Beam angle:2-60 °
Effect:beam,spot and wash effect
Lamp cooling system:imported double blowers,with
gravity-sensing gyroscope inside
Other function:horizontal and vertical speed adjusted,
lamp and light running time display and modular
structure for easy maintenance
Shell and protection class: high temperature
engineering plastic, IP20;
Rotation angle: pan 540°, tilt 270°,with auto back fuction
Light size:41*31*64cm
N.W:26KG G.W:29KG
