技术参数

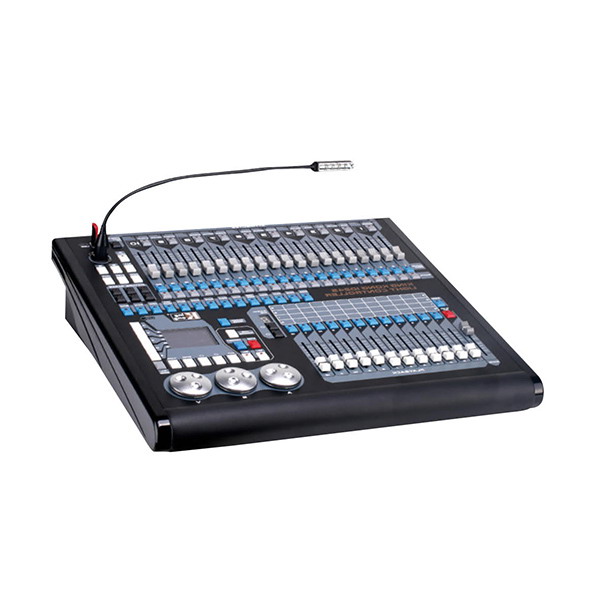

YM-ZT1024S
King Kong 1024 S Console

1.Control parameter: a standard ART-NET output port. Can
simultaneously
output 4096 DMX channels, with 4 photoelectric isolation standard DMX
output (support extended to 8 DMX output) 2.Number of channels: 4096
DMX channels (ART-NET supports 4096 channels directly, DMX output
ports need to be extended to output 4096 channels), and can control 256
16 channel computer lights simultaneously;3.Control lamp position: with
560 light positions, 560 computer lights can be matched with each other at
the same time;4.Playback storage: 10 playback push rods, 60 playback
pages, up to 600 playback;5.Playback : support playback playback mode
and non occupancy mode, play up to 20 playback at most;6.Number of
program steps: a single playback supports up to 100 storage
steps;7.Total control push rod: the panel is equipped with 2 master control
push rods, which are total brightness control and speed control;8.Centralized
control wheel: the panel is equipped with 4 centralized control encoder runner;
9.Lamp property
control: the panel is equipped with 4 centralized control encoder runner
