YM-A660

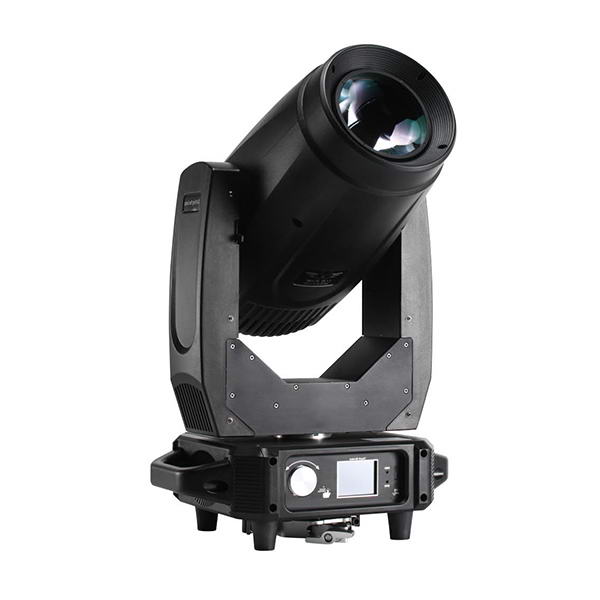

660W LED Computer Moving Head Cutting Light

Optical system
Light source: LED660W (white light)
Light source life: 30000-50000 hours
Indicator: CRI≥70/CRI95 optional
Focusing: high-precision glass lens, electronic linear high-

definition focusing
Light output angle: 7°~42° linear high-speed zoom

Pattern system
Dynamic pattern: 1 rotating pattern plate has 7 optional pattern

pieces
Alternative patterns: 1 fixed gobo plate and 8 gobos, variable

speed jitter/bidirectional rotation effect
Alternative patterns: 1 dynamic fire plate, or linear CTO

correction film

Color system
Fixed color: 1 fixed color plate with 7 color chips, linear color

conversion and half-color rainbow effect

Cutting system
4 gratings realize fast and smooth cutting, and the cutting

direction and angle of each grating can be controlled

separately.And a single chip can achieve complete light closure,

and the entire cutting module has an aperture

Electrical System
Input voltage: 110V-240V 50-60Hz     Rated power: 750W
Power interface: waterproof plug input/output
Signal interface: 3-pin XLR plug input/output

Software and control
Channel mode: 27/36 channels
Communication design: DMX wired transmission, master-slave,

self-propelled, gradual change, RDM two-way control

technology, remote function effect upgrade
Display screen: LCD liquid crystal display, can be reversed 180 °

display, bilingual menu in Chinese and English

Effect
Horizontal/Vertical: Horizontal scanning angle 540°, vertical

scanning angle 270° 16 bit precision scanning
Correction: automatic return correction and 16Bit precision fine-

tuning function, using digital waveform correction technology to

ensure accurate positioning of the X/Y axis,
It will not run after high-speed operation and reset.
Prism: independent rotation of 4 prism effects, 16 macro

functions
Dimming: 0%-100% linear dimming
Strobe: 1-25Hz fast strobe per second, with pulse strobe,

synchronous and asynchronous strobe effect

Other functions
Sensor detection function: adopts photoelectric reset system,

when accidental
