技术参数

YM-Q256/272/432/512/600/832

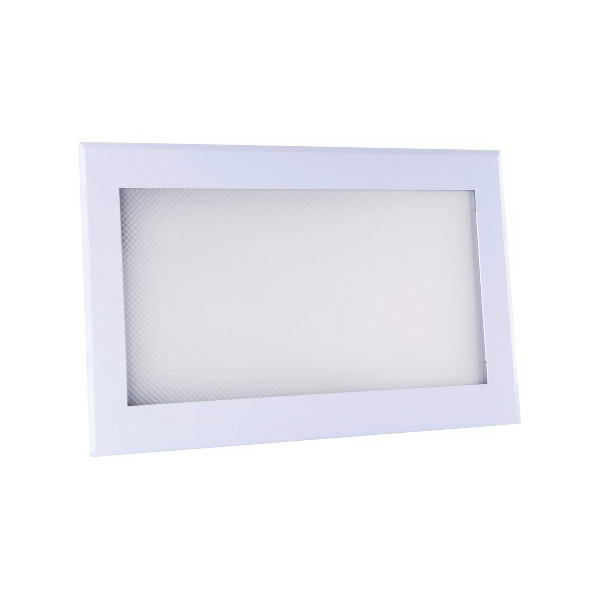

Embedded LED Flat Soft Light

Input voltage: AC100-240V, 50/60Hz
Power: 160W
Light source: 805 high-index LED array
Color rendering index: Ra>95
Light source life: 100000 hours
Color temperature: 3200K, 5600K optional.
Control panel: LCD liquid crystal display + four buttons
Beam angle: 120 degrees
Dimming: 0-100% linear dimming.
Cooling method: no fan natural heat dissipation.
Channel mode: 1CH/2CH.
Control mode: DMX512 control/manual control.
Protection level: IP20
Working temperature: -25°C~ +45°C
Shell Material: Aluminum Alloy
Accessories: installation frame, power cord, signal line
Opening size: 495*300mm
Product Size: 500*270*110mm
Carton size: 550*340*115mm
Net weight/gross weight: 5.5KG/6.5KG
