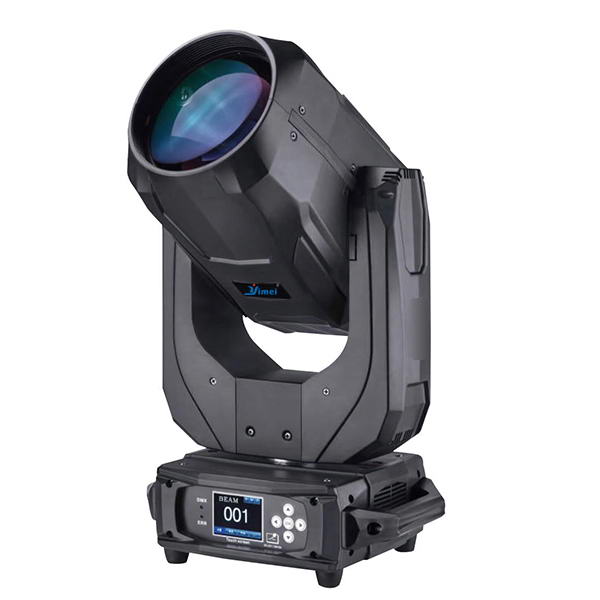

YM-A260
260W Beam Light

Voltage: AC100V-240V
Frequency: 50Hz-60Hz
Power: 350W
Safety wire: 7A
Ballast: Electronic ballast(Philips original ballast)
Light source: PHILIPS 260W
Temperature: 8500K
Life span: 2000 hours
DMX signal: International standard DMX512
Exterior housing: High-temperature resistant plastic
Exterior housing color: Black
Protection llevel: Ip20
Gross weight: 14.8KG
Channels: 16CH/20CH switchable
Motor: 11 pcs silent wave motor
LCD 650 thousand colors touch TFT interface,
simple and attractive, 180°reverse display
X axis horizontal rotation 540℃,
Y axis vertical rotation 270℃,
with automatic positioning
X/Y axis tunable, with automatic positioning,
high accuracy
Dimming: 0-100% linear adjustment
Strobe: Double chip strobe (0.5-9 times/second),
Complete linear dimming and variable strobe speed
Color wheel: with 14 colors + blank
(create a sharp beam effect)
Gobo wheel: with 17 fixed gobo + blank
(change the beam shape quickly)
Prism: Rotating octahedral prism +
honeycomb prism, two-way
rotation, rotation speed is adjustable to
enrich project effect
Focus: 3 sets of optical lens combination,
the effect is far better than
the usual beam lights, can cast a
high-definition pattern
Beam Angle: Parallel Beam Angle0-3.8
Overheating intelligent protectionIntelligent
light bulb switch control (to extend the lamp life)
