YM-H024

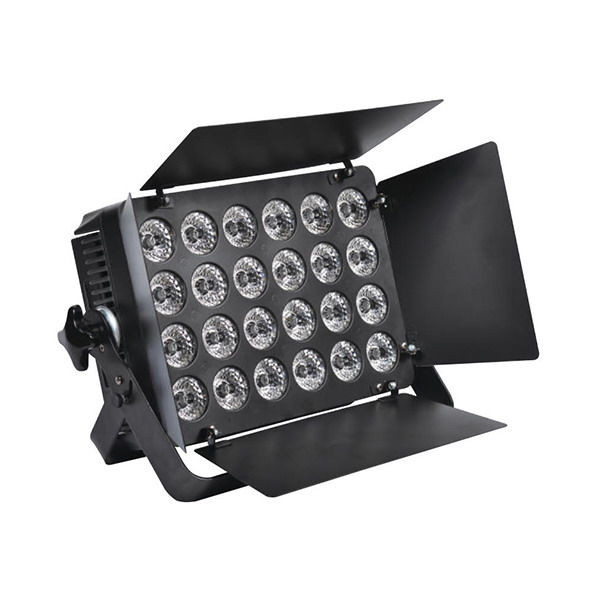

24 pcs RGBW 4in1 LED Face Light

Voltage: AC100-240V 50/60Hz Power: 200W
Lamps：24pcs8W high power RGBW 4in1 LED
Drive current：1000/700mA
Color range：16.7million
Maximum flux：4100lm
The peak intensity：73400cd
Control model：DMX512/Auto/Master-slave
Control protocol：DMX512 Channel model：STAG 9CH
Dimmer：0-100%（16-bit） Strobe：0-20Hz
Optics：25°/30°/45°/60°optional
Fixture connection：DMX in/out, Power in/out
The shell：Die casting aluminum
Cooling：ConvectionHousing color：Black
certification：CE, ROHS The work environment：indoor
Operation temperature：-20°C~ 45°C
N.W：17Kg
N.W：20Kg
Size：390×310×475mm
